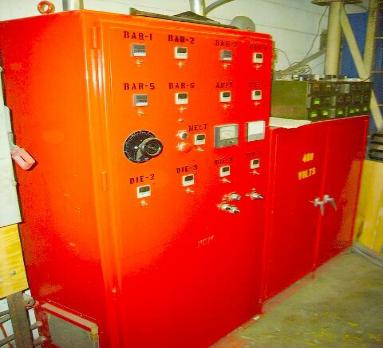

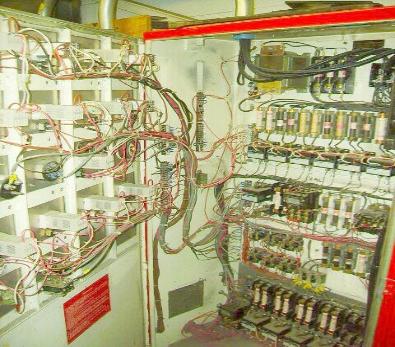

CONTROL CABINET

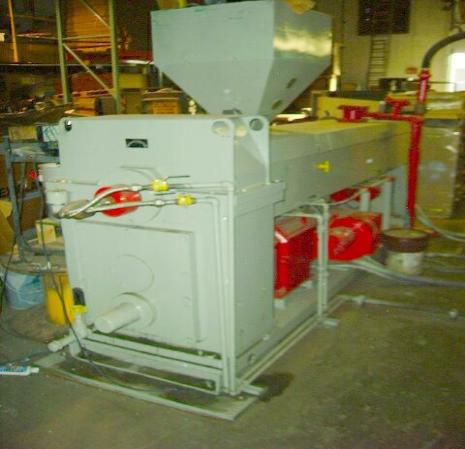

                                                                     1970 NRM EXTRUDER
                                                                    ASKING: OFFERS!


YEAR:        1970                                                           SIZE:             4 1/2 IN.                           LD:        24:1

MODEL:     PACEMAKER   70                                  RATIO:        17.42:1                              HP:        150

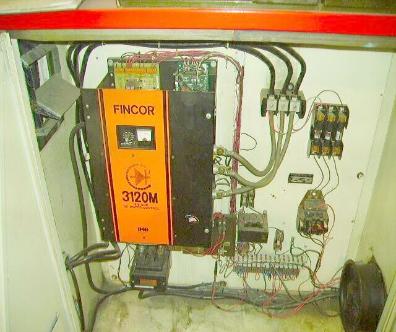

MOTOR:     RELIANCE MATCHED                         DRIVE:        FINCOR  3120M            VENTED:        YES

VOLTS:       480                                                            AMPS:        400 AMPS (200 AMPS EXTRUDER / 200 AMPS CONTROL CABINET)

VENTED WITH WATER COOLED HEAT ZONES, WATER COOLED THROAT AND SCREW.  HEAT ZONES CONSIST OF (6), DIE

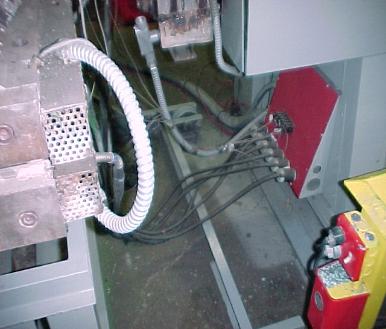

ZONES CONSIST OF (5), MELT ZONE, DIE PLUG IN FOR THERMO-COUPLER.  BARREL HAS BEEN SCOPED FOR A NEW SCREW
AND WAS IN TOLERANCE (DO NOT KNOW WHAT TYPE OF SCREW). UNIT COMES WITH HOPPER.

          THERMOFORMING EQUIPMENT

                     "USED THERMOFORMERS, CONSULTING AND WHOLESALE FLORAL PRODUCTS"

                                                                                                                                             216/246-2945

                                                                                                CLEVELAND, OHIO 44135
                                                               THERMTECHPRODUCTS@YAHOO.COM
 1970 NRM EXTRUDER
ASKING: OFFERS!
